MOQ:	500m
Prijs:	negotiable
Standaardverpakking:	de houten verpakking van de Ijzertrommel (met bescherming)/Gehele Houten Trommel/Gehele Metaaltromme
Leveringstermijn:	10 -15 werkdagen na ontvangen vooruitbetaling
Betalingswijze:	T / T of LC
Toeleveringskapaciteit:	100KM PER MAAND

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

CE, RoHS, CCC, KEMA, BV

Naam van het product:

XLPE-de Kabel van de Isolatie Elektromacht

Nominaal Gebied van Leider:

35mm2 aan 500 mm2

Testvoltage:

42 kV/5min.

standaard:

CEI 60502-2, CEI 60228, BS 6622, VDE 0276

Toepassing:

Voor leggen binnen of Openlucht met Buis

Nominale spanning:

12/20kv

Isolatie:

XLPE-isolatie

Trommelverpakking:

De houten trommel van het verdragsstaal met goede bescherming/Gehele houten Trommel of Gehele Metaal

Markeren:

xlpe electrical cable

cross linked polyethylene cable

Productbeschrijving

XLPE Insulated Power Cable three core with copper tape screen medium voltage power cable

Description:

12/20kv XLPE Insulated Electric Power cable

CU/XLPE/PVC, IEC 60502-2

IBS 6622, VDE 0276, IEC 60228, GB/T 12706.2-2008.

CE, CCC, KEMA. ISO

Constructions:

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications:

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards:

International: IEC 60502, IEC 60228,IBS 6622, VDE 0276

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

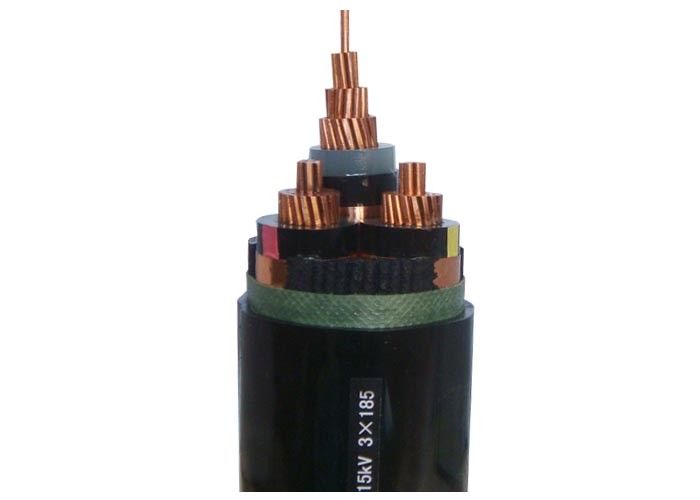

3 Core Medium Voltage Copper Tape Screen Pvc Xlpe Cable Insulated Power Cable 0

Technical data:

Rated voltage: 12/20kV

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area

below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates:

CE, RoHS, CCC, KEMA and more others at request

Technical Specifications:

Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm2	mm	mm	mm	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1×50	5.5	2.0	29	846	0.641	42	215	255
1×70	5.5	2.0	30	959	0.443	42	265	280
1×95	5.5	2.0	32	1093	0.320	42	325	340
1×120	5.5	2.0	34	1236	0.253	42	370	385
1×150	5.5	2.0	35	1373	0.206	42	420	435
1×185	5.5	2.0	38	1573	0.164	42	485	495
1×240	5.5	2.5	40	1817	0.125	42	575	580
1×300	5.5	2.5	43	2084	0.100	42	660	660
1×400	5.5	2.5	45	2455	0.0778	42	775	765
1×500	5.5	2.5	48	2861	0.0605	42	890	885
1×630	5.5	2.6	49	3863	0.0469	42	1060	1010
1×800	5.5	2.8	57	3985	0.0367	42	1230	1160
1×1000	5.5	2.9	61	4718	0.0291	42	1410	1300
1×1200	5.5	3.1	65	5460	0.0247	42	1540	1410
3×35	5.5	3.0	57	2696	0.868	42	130	130
3×50	5.5	3.0	60	2973	0.641	42	160	155
3×70	5.5	3.0	63	3321	0.443	42	195	190
3×95	5.5	3.5	67	3825	0.320	42	240	225
3×120	5.5	3.5	71	4262	0.253	42	275	285
3×150	5.5	3.5	74	4846	0.206	42	310	325
3×185	5.5	3.5	78	5361	0.164	42	355	380
3×240	5.5	3.5	84	6263	0.125	42	420	430
3×300	5.5	4.0	89	7141	0.1000	42	475	490
3×400	5.5	4.1	96	8647	0.0778	42	555	485
