ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting

MOQ:	500m
Prijs:	0.19-10.99USD/m
Standaardverpakking:	De houten Trommel van het Trommelstaal
Leveringstermijn:	15 dagen
Betalingswijze:	BEVESTIGINGSBRIEF, D/A, D/P, T/T

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

ASTM B-231,B232,B399, ICEA S-76-47

Faseleider:

Aluminium

Neutraal of boodschapper:

de vastgelopen leider van de aluminiumlegering en samengeperst rondschrijven

Toepassing:

De luchtlijnen van de Machtstransmissie

Isolatie:

XLPE of pvc

spanning:

0.6/1 kV

Kernen:

3.4.5.6.

Markeren:

xlpe electrical cable

xlpe power cable

Productbeschrijving

0.6/1(1.2)kV AL/XLPE(PE) Insulated

Aerial Bundled Cables without Street Lighting Conductor

Description
The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.
Construction

Conductor:

a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.

Insulation:

The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.

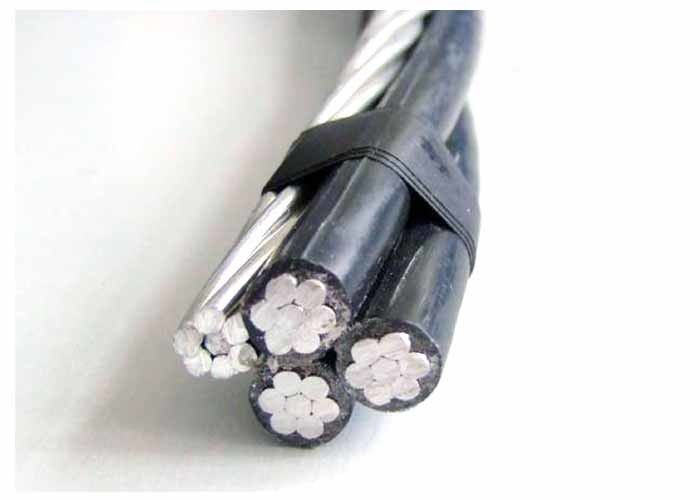

ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting 0

Schedule of technical particulars

Phase conductor
Nominal cross-sectional area	mm²	16	16	25	35	50	70	95	120	150	185
Number of cores		1	3	3	3	3	3	3	3	3	3
Minimum number of wires		6	6	6	6	6	12	15	15	30	30
Nominal insulation thickness	mm	1	1	1.2	1.2	1.4	1.4	1.6	1.6	1.8	2.0
Diameter of insulated core	mm	6.8	6.8	8.5	9.5	11.2	13.0	15.1	16.6	18.4	20.6
Max. DC resistance at 20℃	ohm/km	1.91	1.91	1.20	0.868	0.641	0.443	0.320	0.253	0.206	0.164
Current rating at still wind, ambient	A	61	61	84	104	129	167	209	246	283	332
temperature=30℃	A	61	61	84	104	129	167	209	246	283	332
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area	mm²	25	25	25	25	35	50	70	70	95	120
Minimum number of wires		6	6	6	6	6	6	12	12	15	15
Nominal insulation thickness	mm	1.2	1.2	1.2	1.2	1.2	1.4	1.4	1.4	1.6	1.6
Diameter of insulated core	mm	8.5	8.5	8.5	8.5	9.5	11.2	13.1	13.1	15.1	16.6
Max. DC resistance at 20℃	ohm/km	1.312	1.312	1.312	1.312	0.943	0.693	0.469	0.469	0.349	0.273
Calculated breaking load	kN	6.4	6.4	6.4	6.4	8.9	12.1	18.0	18.0	24.2	30.8
Completed cable
Approx. overall diameter	mm	15.3	19.0	23.2	25.6	30.0	34.9	40.6	44.1	49.2	54.9
Approx. weight of cable	kg/km	160	290	400	500	680	920	1270	1510	1870	2340
Packing length	m/drum	1000	1000	1000	1000	1000	1000	500	500	500	500
