MOQ:	500
Prijs:	USD 0.5-95.6 PER METER
Standaardverpakking:	Staal houten Trommel
Leveringstermijn:	8 dagen
Betalingswijze:	Western Union, L/C, T/T, MoneyGram
Toeleveringskapaciteit:	100KM PER MAAND

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

IEC/KEMA/CE

Isolatiekleur:

Aard of vanaf verzoek

buitenschedekleur:

Zwarte of vanaf verzoek

Trommellengte:

1000m per trommel of vanaf verzoek

Kabelteken:

Inktdruk of het In reliëf maken

Kernteken:

Aantal met inkt of kleurenstrook

leider:

Samengeperste Vastgelopen Koperen geleider, Klasse 2

Markeren:

xlpe power cable

cross linked polyethylene cable

Productbeschrijving

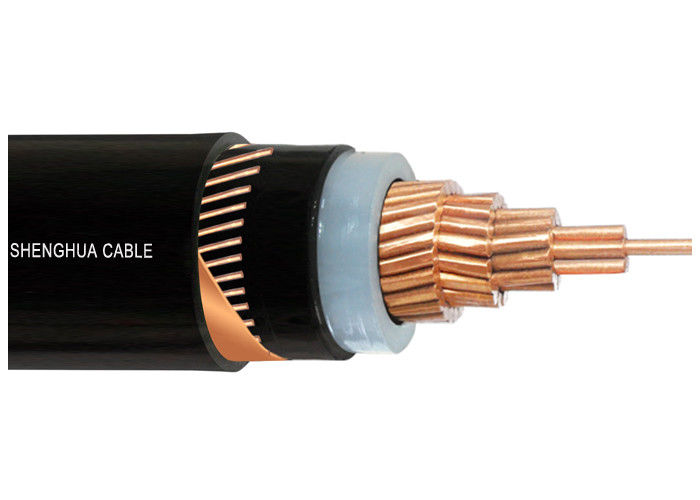

Single Core XLPE Insulated Power Cable Copper Conductor with the Metal Screen

Description:

3.6/6kv single core XLPE Insulated unarmored Power cables

CU/XLPE/CTS&CWS/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA, RoHS, ISO

Constructions

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape or copper wire

Sheath : PVC or FR-PVC type ST₂ to IEC 60502, black

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 3.6/6kv

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm², 140℃ when section-area above 300mm²)

Min. Ambient Temperature: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Technical parameter:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1 × 25	7/2.14	2.5	1.5	18.0	619	0.727	12.5	135	150
1 × 35	7/2.52	2.5	1.5	19.0	737	0.524	12.5	165	180
1 × 50	10/2.52	2.5	1.6	20.0	901	0.387	12.5	200	215
1 × 70	14/2.52	2.5	1.6	22.0	1128	0.268	12.5	250	265
1 × 95	19/2.52	2.5	1.7	23.0	1391	0.193	12.5	305	315
1 × 120	24/2.52	2.5	1.8	25.0	1655	0.153	12.5	355	360
1 × 150	30/2.52	2.5	1.8	26.0	1961	0.124	12.5	405	405
1 × 185	37/2.52	2.5	1.9	28.0	2334	0.0991	12.5	465	455
1 × 240	48/2.52	2.6	1.9	30.0	2904	0.0754	12.5	550	530
1 × 300	61/2.52	2.8	2.0	33.0	3547	0.0601	12.5	635	595
1 × 400	61/2.97	3.0	2.2	37.0	4572	0.0470	12.5	745	680
1 × 500	61/3.23	3.2	2.3	41.0	5630	0.0366	12.5	855	765
1 × 630	61/3.50	3.2	2.4	45.0	6922	0.0283	12.5	980	860
1 × 800	91/3.20	3.2	2.5	50.0	8252	0.0221	12.5	1130	950
1 × 1000	91/3.75	3.2	2.6	54.8	10548	0.0176	12.5	1240	1040
