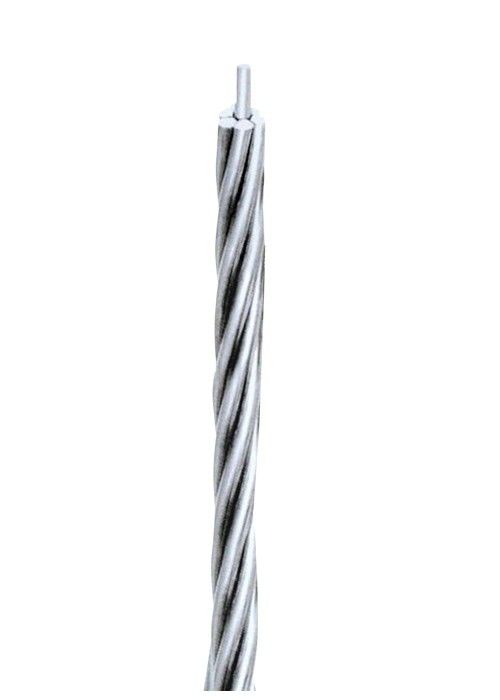

Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification
  • Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification
  • Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification
  • Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification
Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification

Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification

Plaats van herkomst China
Merknaam QINGDAO YICABLE CABLE
Certificering ASTM B399
Productdetails
Materiaal geleider:
Aluminiumlegering
CODEnaam:
AAAC
Nummer van de draden:
7 stuks ~ 61 stuks
Gebied:
21 vierkante mm ~ 887 vierkante mm
Algehele diameter:
5.89mm~38.70mm
Sollicitatie:
Bovengrondse Energiesysteem
Markeren:

all aluminium alloy conductor

,

acsr conductor

Betaling en verzendvoorwaarden
Min. bestelaantal
0.5KM
Prijs
0.10-30.99USD/m
Verpakking Details
Houten trommel of staaltrommel
Levertijd
10 dagen of meer
Betalingscondities
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen
1000KM PER MAAND
Productbeschrijving

Gewone alle aluminium gelegeerde geleiders Anti-extrusie ASTM B399-certificering







              ASTM B399
  Grootte van de geleider Stranding Sectiegebied Diameter van Lineaire massa Nominale sterkte Max. D.C.
Codename       Conductor     Weerstand bij 20°C
  AWG ((MCM) Nee. mm2 mm in kg/km DaN Ω/km
Alton. 4 7/1.96 21.14 5.89 57.89 685 1.5860
  48.69(4) 7/2.12 24.67 6.35 67.56 799 1.3557
Ames. 2 7/2.47 33.65 7.42 92.14 1091 0.9987
  77.47(2) 7/2.67 39.26 8.02 107.50 1275 0.8547
Azusa 1/0 7/3.12 53.49 9.35 146.50 1733 0.6259
  123.3(1/0) 7/3.37 62.46 10.11 171.00 2019 0.5365
Anaheim 2/0 7/3.50 67.45 10.52 184.70 2090 0.4974
  155.4(2/0) 7/3.78 78.75 11.35 215.16 2447 0.4264
Amherst 3/0 7/3.93 85.00 11.79 232.70 2641 0.3945
  195.7 (((3/0) 7/4.25 99.20 12.75 271.50 3079 0.3373
Alliantie 4/0 7/4.42 107.20 13.26 293.70 3334 0.3119
  246.9(4/0) 7/4.77 125.10 14.30 342.60 3885 0.2678
  250.0 19/2.91 126.70 14.58 346.90 3977 0.2651
Buttes 300.0 19/3.19 152.10 15.89 418.60 4772 0.2206
  312.8 19/3.26 158.50 16.31 434.00 4976 0.2112
Canton 350.5 19/3.45 177.30 17.25 485.50 5333 0.1886
  394.5 19/3.66 199.00 18.31 547.40 6016 0.1676
Kairo 400.0 19/3.69 202.70 18.44 555.10 6098 0.1649
  450.0 19/3.91 228.00 19.56 624.40 6862 0.1468
  465.4 19/3.98 235.80 19.89 645.70 7097 0.1431
Darien. 500.0 19/4.12 253.40 20.60 693.60 7617 0.1322
  550.0 37/3.10 278.70 21.67 762.90 8555 0.1200
  559.5 19/4.36 283.50 21.79 776.30 8525 0.1181
Elgin 600.0 37/3.23 304.00 22.63 832.00 9330 0.1105
  650.0 37/3.37 329.40 23.57 909.80 10105 0.1015
Flint 652.4 19/4.71 330.60 23.55 970.60 9942 0.1012
  700.0 37/3.49 354.50 24.46 910.60 10401 0.09464
  740.8 37/3.59 375.40 25.15 1028 11013 0.08944
  750.0 37/3.62 380.20 25.32 1041 11216 0.08796
Greeley. 800.0 37/3.73 405.40 26.14 1109 11930 0.08285
  900.0 37/3.96 456.30 27.74 1249 13460 0.07351
  927.2 37/4.02 469.80 28.14 1287 13868 0.07133
  1000 37/4.18 506.70 29.24 1388 14887 0.06597
  1077.4 61/3.38 483.40 30.42 1496 15907 0.06120
  1165.1 61/3.51 523.70 31.59 1617 17233 0.05675
  1250 61/3.63 633.30 32.67 1733 18354 0.05306
  1259.6 61/3.65 564.00 32.85 1748 18558 0.05248
  1348.8 61/3.78 604.20 34.02 1872 19884 0.04893
  1438.2 61/3.90 644.50 35.10 1997 21209 0.04597
  1500.0 61/3.98 760.00 35.82 2081 22127 0.04414
  1750.0 61/4.30 886.70 38.70 2429 25798 0.03781



Bare All Aluminium Alloy Conductors Anti Extrusion ASTM B399 Certification 0
