MOQ:	500
Prijs:	USD0.9-200
Standaardverpakking:	Houten trommel
Leveringstermijn:	10 werkdagen
Betalingswijze:	T / T, Western Union, L / C
Toeleveringskapaciteit:	50000/month

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

CE KEMA

leider:

Flexibel Koper of ingeblikt Koper

Isolatie:

CPE (Gechloreerd Polyethyleen)

Schede:

chloroprene rubber

Toepassing:

Draagbare machine conntect

standaard:

60245IEC66

Kabelkern:

3-5

Markeren:

trs flexible cable

rubber sheathed cable

Productbeschrijving

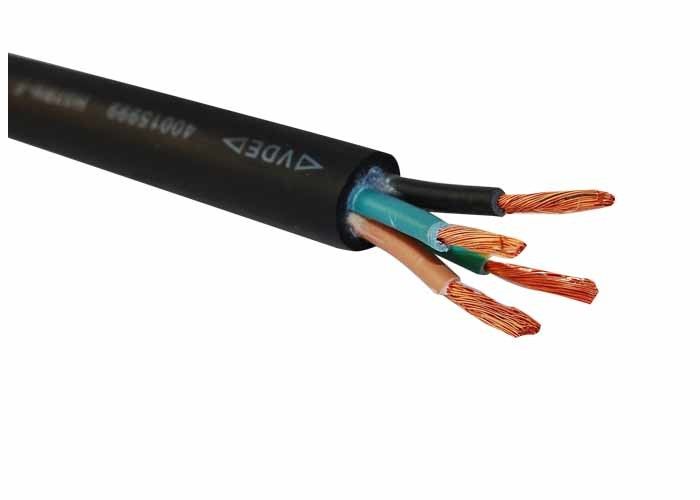

Flexible Copper Chlorinated Polyethylene Insulated EPR Rubber sheath cable

Construction:

Conductor: Flexible copper or tinned copper conductor Class 5

Insualtion: CPE Rubber Sheath

Sheath: EPR Rubber Sheath

Application :

For portable machine, Also can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment

Insulation Color:

Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow

Sheath Color:

Black

Rubber sheathed flexible cable wire:

Working temperature

H07RN-F model rated voltage U0/U IS 450/750V

H05RN-F model rated voltage U0/U IS 300/500V

H05RR-F model rated voltage U0/U IS 300/500V

Long time allow working temperature of wire core cant be higher than 60

Rubber copper wire Working Conditions

1. Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)

2. The long-term working temperature of conductor should be no longer than 65°C

3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.

4. ZR type cables have fire-retardant character.

Cross-Sectional Area mm2	Number diameter of core	Overall Diameter		Max.D.C resistance of at 20℃ MΩ/km		Approx Weight (kg/km)
Cross-Sectional Area mm2	Number diameter of core	min	max	Copper	Tinned-Copper	YZ	YZW
2x0.75	24/0.2	5.7	7.4	26	26.7	81.7	89.6
2x1	32/0.2	6.1	8	19.7	20	123	138
2x1.5	16/0.25	7.6	9.8	13.3	13.7	185	196
2x2.5	28/0.25	9	11.6	7.98	8.21	234	252
2x4	56/0.3	10.6	13.7	4.95	5.09	255	276
2x6	84/0.3	11.8	15.1	3.3	3.39	356	371
3x0.75	24/0.2	6.2	8.1	26	26.7	97.4	105
3x1	32/0.2	6.5	8.5	19.7	20	112	126
3x1.5	16/0.25	8	10.4	13.3	13.7	156	174
3x2.5	28/0.25	9.6	12.4	7.98	8.21	204	2019
3x4	56/0.3	11.3	14.5	4.95	5.09	285	302
3x6	84/0.3	12.6	16.1	3.3	3.39	398	423
4x0.75	24/0.2	6.8	8.8	26	26.7	117	125
4x1	32/0.2	7.1	9.3	19.7	20	134	148
4x1.5	16/0.25	9	11.6	13.3	13.7	186	206
4x2.5	28/0.25	10.7	13.8	7.98	8.21	255	270
4x4	56/0.3	12.7	13.8	4.95	5.09	356	374
4x6	84/0.3	14	17.9	3.3	3.39	465	482

Packing and shipping

Flexible Copper Chlorinated Polyethylene Insulated EPR Rubber Sheath Cable 1
