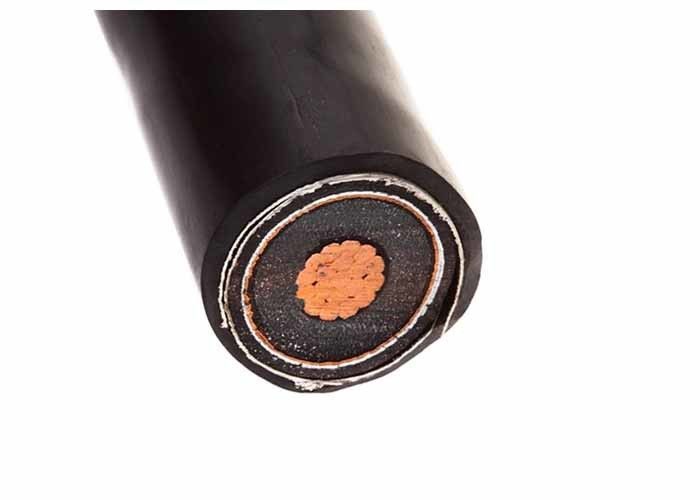

Single Phase Armoured Electrical Power Cable HT 24KV Steel Tape Round Steel Wire

MOQ:	200m
Prijs:	USD 1.66-6.88/M
Standaardverpakking:	Houten trommel
Leveringstermijn:	7 dagen
Betalingswijze:	L / C, T / T
Toeleveringskapaciteit:	563790KM/week

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

ISO,CE,IEC,TUV,KEMA

Schild:

koperband

leider:

vastgelopen koper

Jas:

PVC

Monster:

gratis

Gepantserd:

Ronde Staaldraad.

Testvoltage:

35kv

Markeren:

armored electrical wire

armored cable wiring

Productbeschrijving

Single Phase HT 24KV Steel Tape Armoured Electrical Power Cable Biggest Cable manufacturer.

High Tension Armoured Power Cable Power Cable Details

YJ: XLPE insulation

V: PVC sheath

32:Steel wire armoring—3 cores

22:Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant

Construction

1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 ..... Extruded PVC Inner Covering

10 .... Stainless Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data:

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-20°C till +90°C
	fixed		-20°C till +90°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 50265-2-1

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
