CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation

MOQ:	1000 meter
Prijs:	$0.25~105/M
Standaardverpakking:	trommels
Leveringstermijn:	een week of een 10days
Betalingswijze:	T / T, L / C
Toeleveringskapaciteit:	10,000 kilometers per Maand

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

ISO,CE,IEC,TUV,KEMA

Naam van het product:

Koper Gepantserde Kabel

Nominale spanning:

0.6/1kV

Isolatie:

XLPE

leider:

pantser:

Staalband

Grootte:

1.0 tot 630 Sqmm

Kernen:

1~ 5 kernen

Normen:

CEI/BS/ZIJN/VDE

Markeren:

armored electrical wire

armoured power cable

Productbeschrijving

CU/XLPE/STA/PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation

Standards

IEC60502, BS6346, VDE, AS/NZS, UL,etc or as customer's request.

Rated Voltage(kV):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.

Construction

Conductor : Solid or stranded Copper conductor, Cl.1 or Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Steel tape
Sheath : PVC type ST2 to IEC 60502, black

Applications

Used for power transmission and distribution line with voltage rated at 35kV and below.

Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Model & Spec.

Type	Desciption	Rated Voltage	NO. of Cores	Nomibal section(mm2)	Applications
YJV YJLV	Cu or Al conductor,XLPE insulated.PVC sheathed electric cable	0.6/1KV	1,2,3,4	1.5 to 400	For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
		0.6/1KV	3+1	3×4+1×2.5 to 3×400+1×185
		6/6kV	1,3	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	1	25 to 500
		8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	1	50 to 500
YJV22 YJLV22	Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable	0.6/1KV	3	1.5 to 400	Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
		0.6/1KV	4	4 to 240
		6/6kV 8.7/10kV 8.7/15kV 12/20kV	3	25 to 300
		21/35kv	3	50 to 240

Technique property:

1,The long time working temperature is at 75℃, suffer short circuit (within 5 seconds), the temperature of core can not higher than 160℃

2,The ambient temperature should not lower than -10℃

3,The laying temperature should not lower than 0℃

4,Single core’s bend radius with no armor should not exceed 20D,single core’s bend radius with armor should not exceed than 15D,three cores’ bend radius with armor should not exceed 12D

Note:

1. Only a part of cables are listed in the table. Cables with other specifications can be inquired.

2. Cables can be supplied with a range of single mode or multi mode.
3. Specially designed Cables structure is available on request.

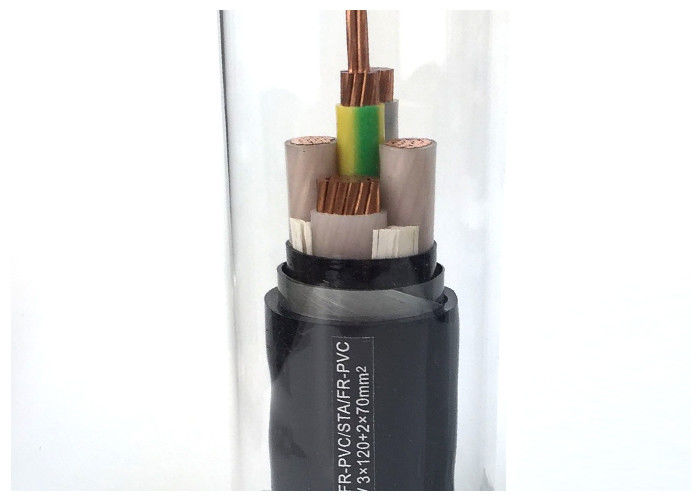

CU / XLPE / STA / PVC Steel Tape Armour Power Cable Cu conductor XLPE Insulation 0

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
