5 Core SWA PVC Armoured Electrical Cable 2 Top Armoured Power Cable 90 °C

MOQ:	500m
Prijs:	USD 2.66-8.89/M
Standaardverpakking:	Houten trommel
Leveringstermijn:	7 dagen na gekregen storting
Betalingswijze:	L / C, T / T
Toeleveringskapaciteit:	8678KM/Day

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

CE/KEMA/TUV/RoSH/ISO

Temp werken:

90 °C

gepantserd materiaal:

Ronde Staaldraad.

Monster:

Beschikbaar

Testvoltage:

3500V

Isolatie:

XLPE

Garantie:

2 jaar

buitenschedekleur:

Zwarte of vanaf verzoek

Markeren:

armored electrical wire

armored cable wiring

Productbeschrijving

5 Core SWA PVC Armoured Electric Power Cable 2 Top China Cable Manufacturer

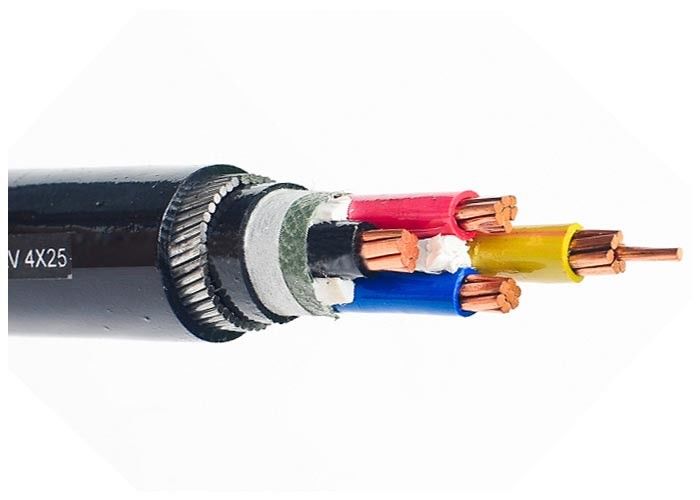

Constructions

①Conductor: Plain circular stranded copper conductor, comform to IEC 60228 class 2

②Insulation: XLPE(cross-linked polyethylene) rated at 90^oC

③Inner Covering: PVC

④Inner Sheath: PVC

⑤Armoring: Steel Wire

⑥Overall Sheath: PVC type ST₈ to IEC 60502, black

Note: Insulation color as per standards or at request

Applications

Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1 kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm2	pc/mm	mm	mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
5 × 4	1/2.25	0.7	1.0	1.25	1.8	20.0	783	4.61	3.5	34	45
5 × 6	1/2.76	0.7	1.0	1.25	1.8	22.4	946	3.08	3.5	43	57
5× 10	7/1.38	0.7	1.0	1.6	1.8	25.8	1398	1.83	3.5	60	77
5 × 16	7/1.78	0.7	1.0	1.6	1.8	29.0	1784	1.15	3.5	83	105
5 × 25	7/2.14	0.9	1.0	1.6	1.8	34.2	2378	0.727	3.5	105	125
5 × 35	7/2.52	0.9	1.0	1.6	1.9	37.8	3237	0.524	3.5	125	155
5× 50	10/2.52	1.0	1.2	2.0	2.1	43.2	3994	0.387	3.5	160	185
5× 70	14/2.52	1.1	1.2	2.0	2.3	49.0	5514	0.268	3.5	200	225
5× 95	19/2.52	1.1	1.4	2.5	2.5	55.0	6816	0.193	3.5	245	270
5 × 120	24/2.52	1.2	1.4	2.5	2.6	61.0	8174	0.153	3.5	285	310
5 × 150	30/2.52	1.4	1.4	2.5	2.8	67.8	9859	0.124	3.5	325	345
5 × 185	37/2.52	1.6	1.6	2.5	3.0	74.3	11805	0.0991	3.5	375	390
5 × 240	48/2.52	1.7	1.6	3.2	3.3	83.0	15706	0.0754	3.5	440	450

Packing & Shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
