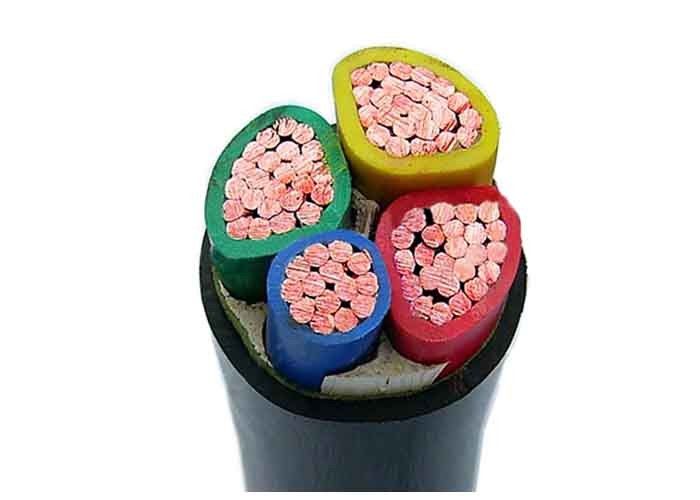

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer

MOQ:	300 meter
Prijs:	US$1.67~266.85per meter
Standaardverpakking:	Staal houten Trommel
Leveringstermijn:	7 dagen
Betalingswijze:	L/C, T/T, D/A, D/P, Western Union, MoneyGram, Reservelc
Toeleveringskapaciteit:	30000Kilometer per Maand

Details Informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

China

Merknaam

QINGDAO YICABLE CABLE

Certificering

IEC,KEMA,ISO,CE,GOST

Kernen:

Vier

formaat:

1.5sqmm~1000sqmm

Dirigent Type:

De Draden van het Compatedkoper

Isolatiekleur:

rood, geel, blauw, groen

Nominale spanning:

600/1000V

Schedekleur:

Zwarte of aanpassing

inpakken:

Staal houten Trommel

Markeren:

pvc insulated copper wire

copper pvc wire

Productbeschrijving

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC/XLPE

Sheath: PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement

Applications

Used for Power transmission and distribution line with voltage rated at 35kv and below. Compared with PVC Insulated Power cable, XLPE power cable boasts not only characteristics of excellent electricity, mechanism , heat and aging- resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.

For laying indoors and outdoors.Able to bear certain traction during installation, but not

external mechanical forces.

Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/ T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core
15 x cable O.D for multi core
Certificates
CE, RoHS, CCC, KEMA and more others at request

Electric Performance

1.Maximum Conductor DC resistance @ 20℃, Ω/km

Cross Section mm2	Copper	Aluminum	Cross Section mm2	Copper	Aluminum
25	0.727	1.20	185	0.0991	0.164
35	0.542	0.868	240	0.0754	0.125
50	0.387	0.641	300	0.0601	0.100
70	0.268	0.443	400	0.0470	0.0778
95	0.193	0.320	500	0.0366	0.0605
120	0.153	0.253	630	0.0238	0.0469
150	0.124	0.206

2. Single phase AC 50Hz voltage test or DC voltage test:

Rated voltage	3.6	6	8.7	12	18	21	26
Single phase AC 50Hz test voltage	12.5	21	30.5	42	63	73.5	91

3. Partial Charge Test:

Test voltage is 1.73U0, the partial charge should not bigger than 10PC.

Muti-Cores 0.6/1kV CU PVC Insulated Cables IEC CE Certified Product Shanghai Manufacturer 0
